Optics and module

Sony® Starvis Image Sensor

• Backside illumination sensor
• 4K (3840x2160p) sensor
• 16:9 Aspect ratio, 30fps
• 1.65um ultra big pixel (low noise, high sensitivity and low light performance)
• Digital overlap HDR (high dynamic range)

Module

• 152º Total FOV Coverage (Super Wide Angle)
• <3% Ultra-Low Distortion
• 4x Infrared Lights
• Switchable night filters for night vision
• Enhanced PTZ (pan,tilt, zoom)
• • 2x lossless digital zoom (up to 3x digital zoom)
  • ±20º (left-right-up-down) electro-mechanical tilting
  • Touch and remote controlled tilting
• Unhackable camera privacy switch (hardware based)
• Exposure control

Lens

• 6-element lens
• 112º FOV
• ƒ/2.2 aperture
• Room calibrated DoF
• Aspherical glass/plastic elements

Hardware Based Image Signal-Processor (ISP) and Image Enhancement-Processor (IEP)

• Pre and Post Video Processing
• Image Enhancement engine
• Noise Reduction

Decode

• Up to 4K 3840x2160 69FPS, FullHD 1920x1080 60FPS output
• Real-time video decoder of MPEG-1, MPEG-2, MPEG-4,H.263, H.264, H.265, VC-1,VP9, VP8, MVC
• • H.264 10bit up to HP level 5.1 : 2160p@60fps
  • VP9 : 2160p@60fps
  • H.265/HEVC 10bit : 2160p@60fps
  • VP8 : 1080p@60fps
• H.264 High Profile, H.265-10bit

Encode

• H.264 video encoder up to HP@level4.1, MVC and VP8
• Up to FullHD 1920x1080 at 30FPS
• H.264 High Profile
• Dual: H.239 (H.323); BFCP (SIP)

ARMv8 64-bit 6-core CPU (2x MPCore A72 + 4x MPcore A53)

Quad Core ARM GPU supporting OpenGL ES3.0, OpenCL1.2, DirectX11.1

32GB storage, expandable via MicroSD XC

Security

Embedded hardware based encryption

• Secure boot
• Dual-channel encryption and decryption engine
• • AES 128/192/256 bit key mode
  • DES/3DES
  • SHA1/SHA256/MD5
  • 160 bit Pseudo Random Number Generator (PRNG)
  • 256 bit True Random Number Generator (TRNG)
  • PKA 512/1024/2048 bit Exp Modulator
• SIP “Digest” authentication (MD5)
• RTP media enciphering with AES-256
• H.323 security per H.235v3
• Public-Key including Diffie-Hellman (2048 bits), RSA (up to 4096 bits)
• Cryptographic hash (up to SHA-512)
• SSL Traffic Encryption
• Encrypted SharePreferences and LocalDB
• End to End Encrypted Conversation (Video, Audio, Text)

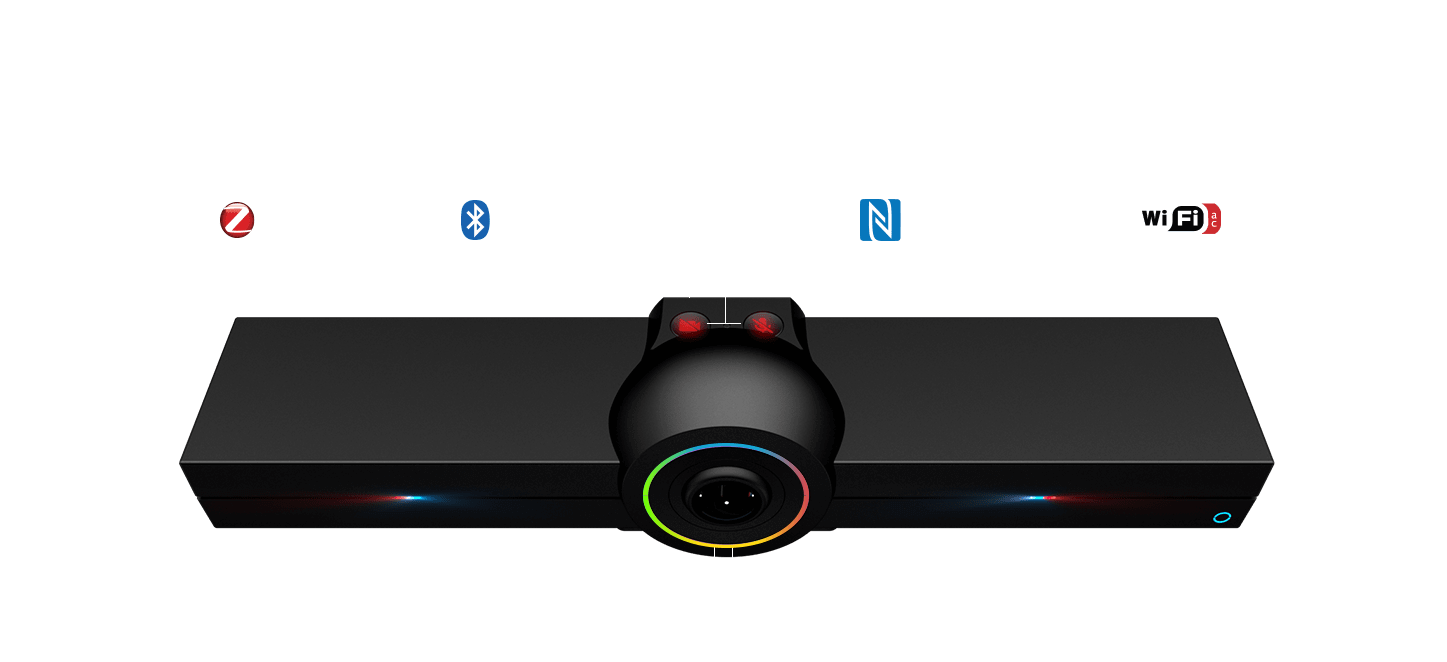

• Secure Bluetooth, Wi-Fi and ZigBee Communication
• Hardware Non-Hackable Audio and Video Switches
